Voltage is always measured between two points.
I found that difficult to understand back in the day.
Until I realized that measuring something between two points is a normal thing. For example, length is also always measured between two points!
For example, a 9V battery will have a 9V difference between the plus and the minus terminal.
Sometimes I say: "The voltage is 5V at point X."
What I mean is that it's 5V compared to the 0V in the circuit.
In a circuit with a 9V battery, the 0V would be the minus of the battery.
So what's a voltage drop?

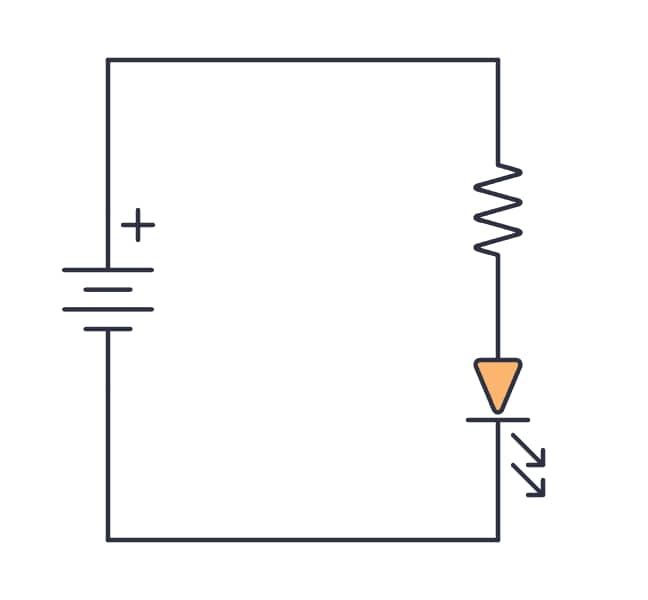

Imagine a resistor and an LED connected in series to a 9V battery, like this:
The plus of the battery would be 9V (compared to the minus).
After the resistor and before the LED, you'd have a lower voltage.
So the voltage has "dropped" over the component.
Hence, "voltage drop".
