This project is based around three normal LEDs that I control so that they look like a flickering flame:

​

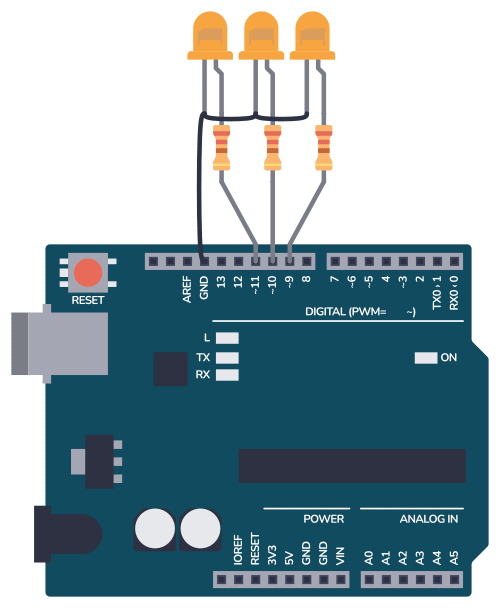

The LEDs are connected in series with a resistor to the PWM pins on the Arduino so that I can control the brightness.

And in the code, I change the brightness of each LED to a random value every 50 milliseconds.

​

​

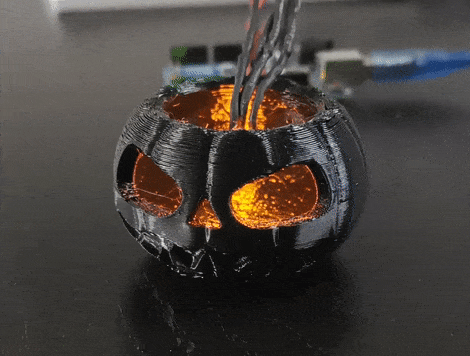

I 3D-printed my pumpkin, but you can place your LEDs in whatever you have at hand. For example a carved pumpkin or an old lantern.

​
​The code is pretty straightforward

In the setup() function, I set up the LED pins as outputs. And in the loop() function, I use the analogWrite() function to set a random brightness value to each LED, with a 50-millisecond delay between each change of value.

  int ledPin1 = 9;  int ledPin2 = 10;  int ledPin3 = 11;    void setup() {    // Set LED pins as outputs    pinMode(ledPin1, OUTPUT);    pinMode(ledPin2, OUTPUT);    pinMode(ledPin3, OUTPUT);  }    void loop() {      analogWrite(ledPin1, random(10, 255));      delay(50);      analogWrite(ledPin2, random(10, 255));      delay(50);      analogWrite(ledPin3, random(10, 255));      delay(50);  }

​
Do you think that the Arduino UNO takes up too much space for this project? Well, then how about shrinking it down onto an ATtiny85 chip?

If you're able to build projects with Arduino, there's not a lot you need to learn to build with the ATTiny85.

But that's for another email.

​
Keep On Soldering!
Oyvind @ build-electronic-circuits.com
